55%Alu-zinc Corrugated Metal IBR Trapezoidal Galvalume Steel Tiles G550 / SGC570
Types of steel tiles
1. Corrugated Steel Tiles
- Description: These are traditional roofing sheets with a wavy pattern, offering good water drainage and aesthetic appeal.
- Applications: Used for industrial, commercial, and residential roofing.
2. Trapezoidal Steel Tiles
- Description: Featuring a trapezoidal shape, these tiles provide excellent strength and durability.
- Applications: Ideal for industrial buildings, warehouses, and large commercial structures.
3. Tile-Effect Steel Tiles
- Description: Designed to mimic the appearance of traditional clay or concrete tiles while providing the benefits of steel.
- Applications: Popular in residential buildings and commercial buildings for aesthetic purposes.
4. Standing Seam Steel Tiles
- Description: These tiles have a raised seam running vertically up the roof, providing a sleek, modern look and superior weather resistance.
- Applications: Used in contemporary residential buildings and high-end commercial projects.
5. Sandwich Panel Steel Tiles
- Description: Composed of a core insulating layer sandwiched between two steel sheets, offering excellent thermal and acoustic insulation.
- Applications: Used in cold storage, warehouses, and buildings requiring temperature control.

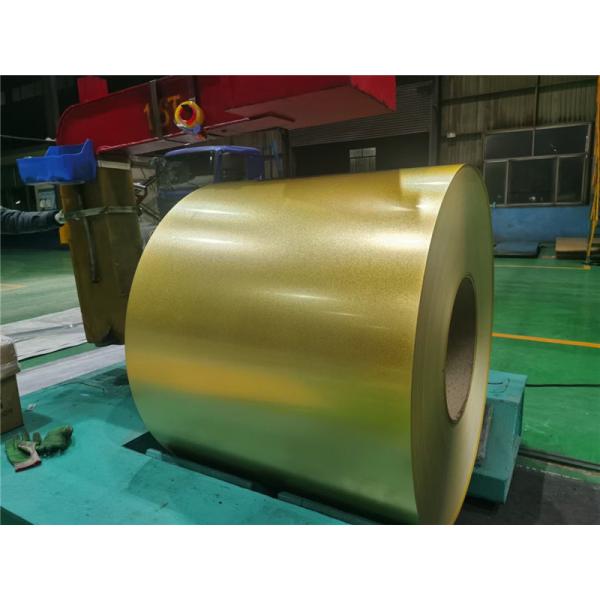

Aluzinc steel coils, also known as galvalume steel coils, are widely recognized for their exceptional corrosion resistance, durability, and aesthetic appeal. These properties make them highly versatile, leading to a broad range of applications across various industries. Here is a detailed overview of the primary applications and uses of Aluzinc steel coils:
1. Construction Industry
Roofing and Cladding:
- Residential Buildings: Aluzinc steel coils are extensively used in roofing and cladding for residential homes due to their long-lasting protection against the elements and attractive finish.
- Commercial Buildings: In commercial settings, they provide robust and aesthetically pleasing solutions for exterior walls and roofs, contributing to both durability and architectural design.
Architectural Panels:
- Facades: The material is used in creating modern facades for buildings, offering a sleek, metallic look that enhances the visual appeal of structures.
- Interior Design: Aluzinc steel is also used for interior panels in industrial and commercial spaces, providing a durable and stylish finish.
Structural Components:
- Framing: Aluzinc steel is used in the structural framework of buildings due to its high strength and resistance to rust and corrosion, ensuring longevity and structural integrity.
| Category | Details |
| Thickness Range | 0.14 mm - 2.00 mm |
| Width Range | 600 mm - 1500 mm |
| Coil Weight | Up to 25 tons |
| Coil Inner Diameter | 508 mm / 610 mm |
| Coating Composition | 55% Aluminum, 43.4% Zinc, 1.6% Silicon |
| Coating Weight | AZ50 - AZ200 (50 g/m² - 200 g/m²) |
| Surface Finish | Regular Spangle, Mini Spangle, Zero Spangle |
| Surface Treatment | Chromated, Non-Chromated, Oiled, Dry, Anti-fingerprint |
| Mechanical Properties | |
| - Yield Strength | 300 - 550 MPa |
| - Tensile Strength | 300 - 600 MPa |
| - Elongation | 10% - 30% (depending on grade) |
| Spangle | Regular, Minimised, Zero |
| Coil Length | Custom lengths based on customer requirements |
| Standard Compliance | ASTM A792, JIS G3321, EN 10346 |
| Applications | Roofing, Siding, HVAC, Appliances, Automotive, Agricultural Equipment, Industrial Components |
